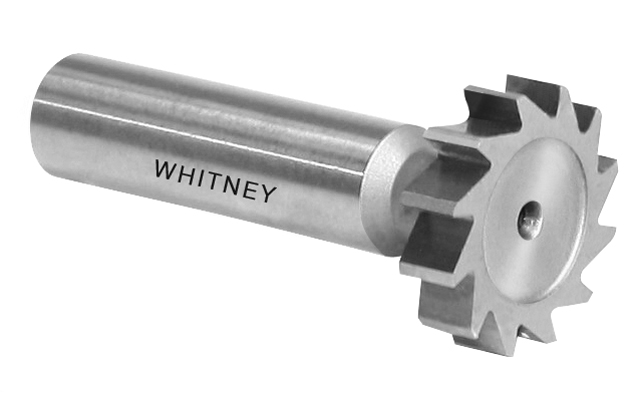

Keyseat Milling Cutters
EDP No. 30001 WTC No. 302040
|
Allow one week for PVD Coating
|
No Reviews On Record for this Product
|
Technical Specs
Keyseat Milling Cutter; CARBIDE TIPPED STYLE 120 #204 (1) 1/2X1/16
|
Type:
|
Keyseat Milling Cutters
|
|
Material:
|
Carbide Tipped
|
|
Coating:
|
No Coating
|
|
WTC No:
|
302040
|
|
EDP No:
|
30001
|
|
American Standard #:
|
204
|
|
Old Standard #:
|
1
|
|
Style:
|
Style 120 - Carbide Tipped
|
|
Neck Diameter:
|
0.13
|
|
Overall Length:
|
2-1/16''
|
|
Number of Teeth:
|
6
|
|
Cut Diameter, Inch:
|
1/2''
|
|
Cut Diameter, Metric:
|
12.7
|
|
OD Tolerance:
|
+.010 /+.015
|
|
Cut Width:
|
1/16''
|
|
Width Tolerance:
|
+0.0/-.0005
|
|
Tooth Configuration:
|
Straight
|
|
Shank Diameter:
|
1/2''
|
|
Shank Length:
|
2
|
|
Shank Type:
|
Straight
|
|
Shank Dia. Tolerance:
|
+0.0/-.0005
|
